Icom Receivers

Icom now have a pair of new receivers - the desktop IC-R8600 and the portable IC-R30 Radio

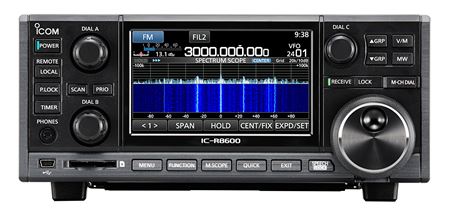

IC-R8600

The IC-R8600 is a super wideband communication receiver that covers the radio spectrum from 10 kHz to 3 GHz. It also has the capability to decode selected digital communication signals including, D-STAR, NXDN, dPMR and P25. The IC-R8600 incorporates the latest software demodulation technology incorporated on Icom’s latest HF Amateur radios, providing superior performance and intuitive operation. With the optional remote control software for a Windows PC, received audio and spectrum scope data can be transferred through an IP network for monitoring from remote locations.

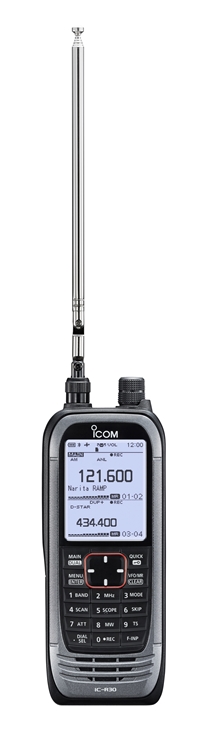

IC-R30

The IC-R30 is Icom's latest wideband handheld receiver. Not only does it receive over a wide (0.1 to 3304.999 MHz) frequency range in AM, FM, WFM, USB, LSB and CW, but it can also decode digital modes including P25, NXDN, dPMR, D-STAR and Japanese domestic DCR.0.1–3304.999 MHz in AM, FM, WFM, USB, LSB and CW as well as digital modes. A ferrite bar antenna for AM broadcasts is built-in, and the earphone cable can be used as an external antenna for FM broadcasts. *SSB, CW and digital modes: 0.1 MHz–1.3 GHz. Usable frequencies and modes differ, depending on the selected A or B band. See specifications for details.

Decodes various digital modes, including P25 (Phase 1), NXDN, dPMR, D-STAR (Digital Smart Technology for Amateur Radio) and Japanese domestic DCR (Digital Convenience Radio).

The radio can receive on different bands and different modes. For example, HF and UHF signals can be monitored simultaneously. You can scan for other active channels on the B band, while receiving the primary signal on the A band.

Dual Band Recording Function

The audio of the two bands received while in the Dualwatch mode can be individually recorded onto a microSD card* in the WAV format. The recorded audio can be played back on the receiver or a PC. Also, frequency, mode, S-meter reading, time, current position data and altitude can be saved with received audio.
